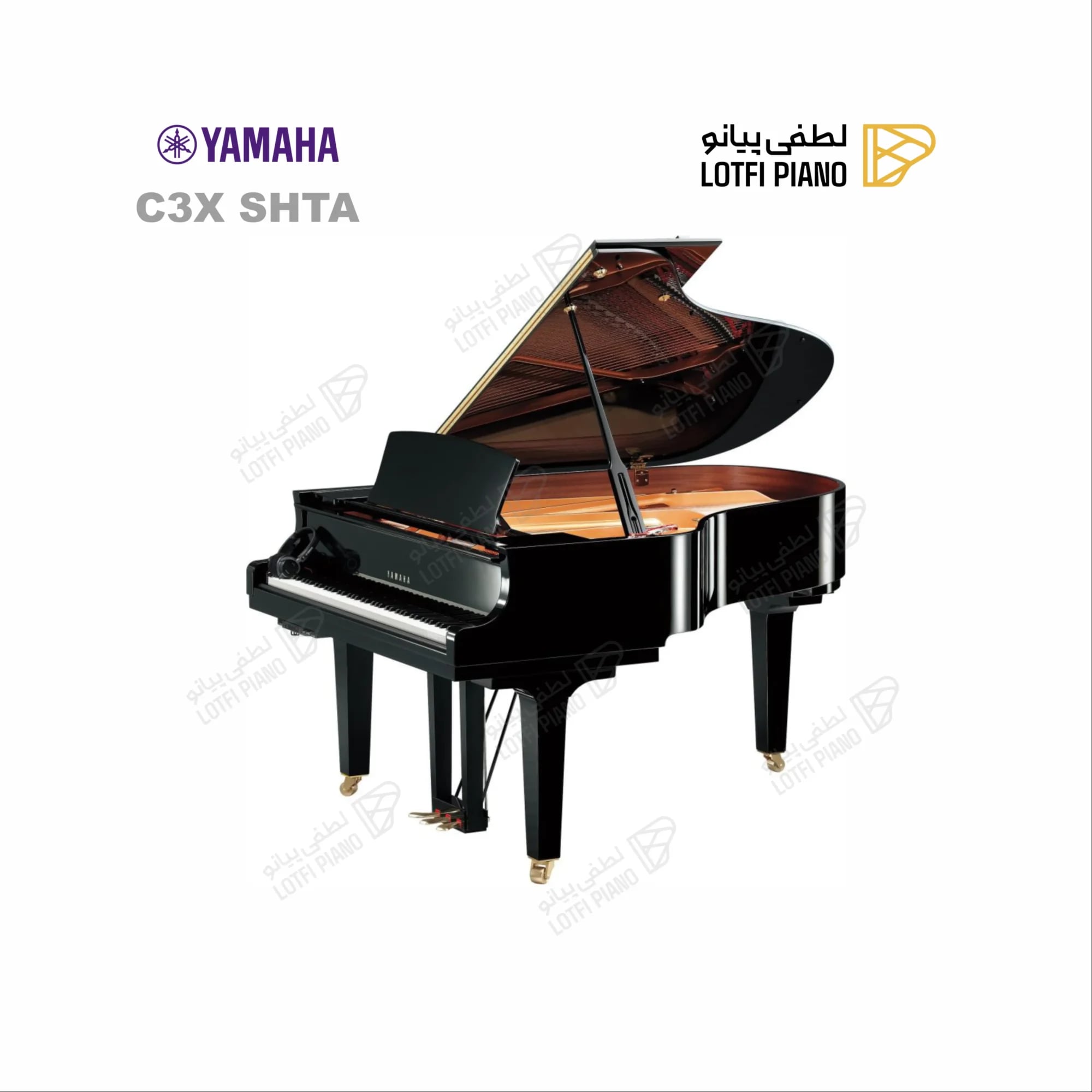

YAMAHA C3X SHTA

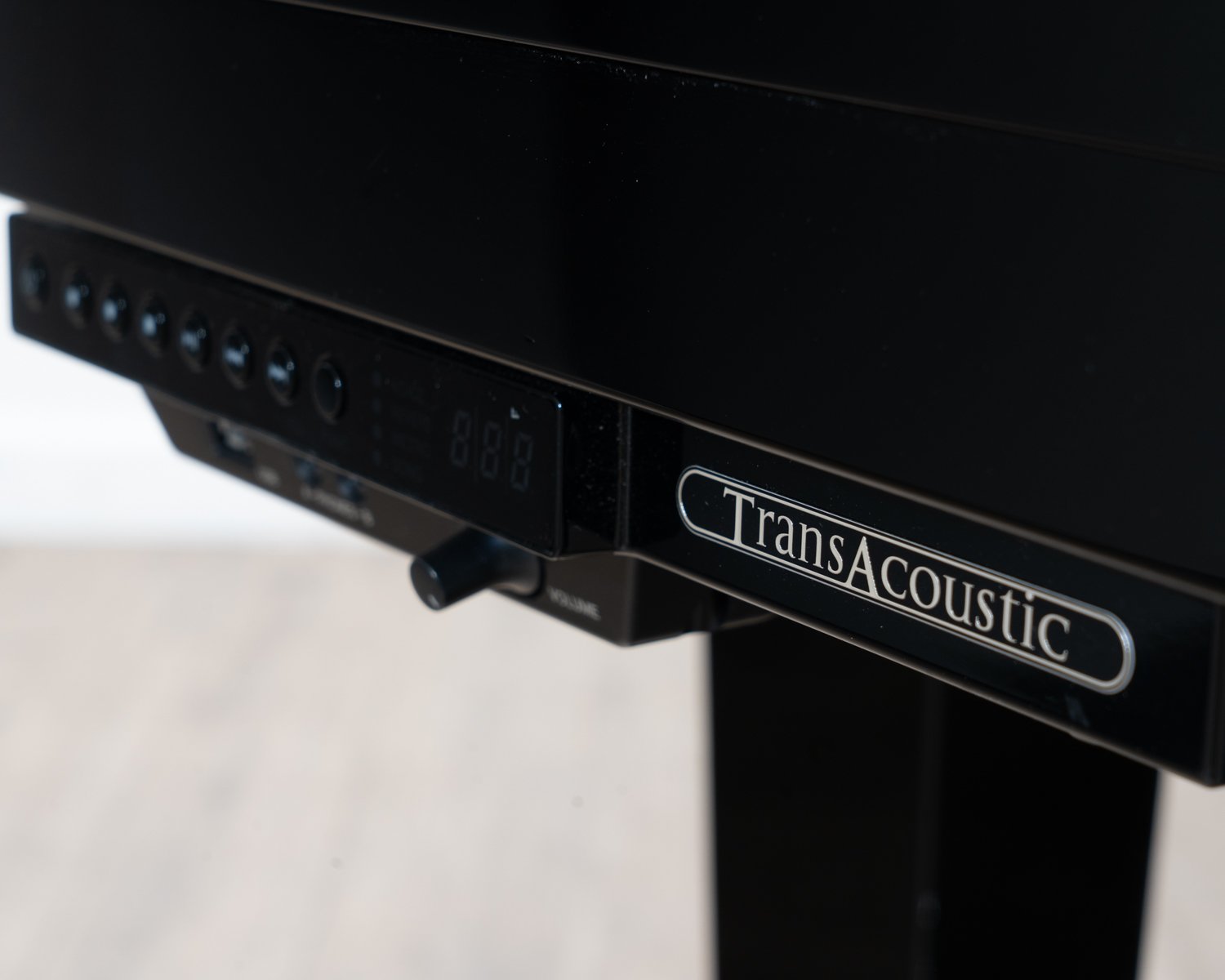

TransAcoustic™ Technology: The Soundboard is the Speaker

The "TA" in SHTA stands for TransAcoustic™, a groundbreaking system that turns the piano’s solid spruce soundboard into a natural loudspeaker. Instead of using traditional cone speakers, transducers are attached to the soundboard to vibrate the wood itself. This allows you to play digital sounds—like strings, electric pianos, or even the CFX concert grand—directly through the acoustic body of the piano. You can control the volume of your piano while still enjoying the rich, organic resonance of a real grand piano right in your Dubai living room.

The C3X SHTA features a USB TO HOST port (located on the underside of the keyboard unit). To connect your device:

• For iPad/iPhone (Lightning): You will need a standard USB cable (Type A to Type B) and an Apple Lightning to USB Camera Adapter.
• For iPad/Android (USB-C): You will need a USB-C to USB adapter (OTG).
• Note: Because the SHTA is a first-generation TransAcoustic/Silent model, it does not have built-in Bluetooth. A wired connection is the most stable way to ensure zero "latency" (delay) when you are playing.

Connectivity: Confirmed wired connection via USB TO HOST is available for modern tablets/phones.

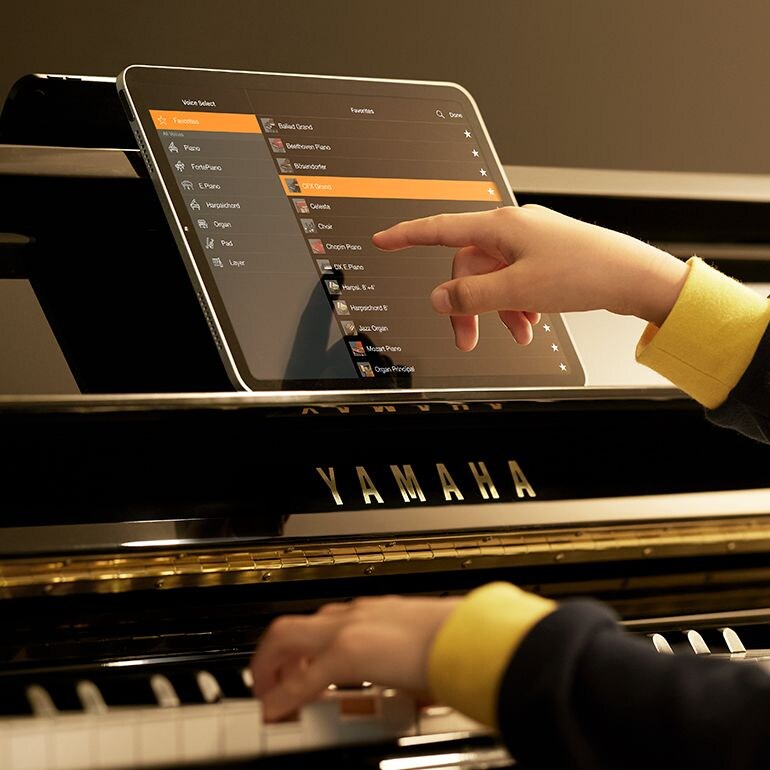

• App Ecosystem: Identified Smart Pianist and MIDI recording as the primary digital benefits.
• Hybrid Edge: Highlighted how the TransAcoustic system vibrates the acoustic soundboard for digital sounds

The Binaural Headphone Experience: Three-Dimensional Sound

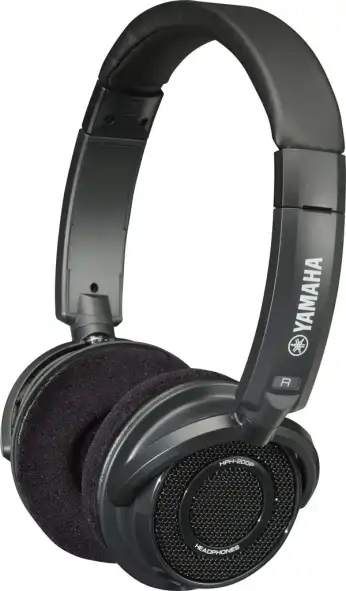

Playing the Yamaha C3X SHTA with headphones is not like using a standard digital piano; it features Yamaha’s revolutionary Binaural Sampling technology. By recording the flagship CFX concert grand with specialized microphones placed at the ears of a mannequin, Yamaha has recreated a 3D soundstage. This makes you feel as though the music is coming directly from the piano’s soundboard rather than through the speakers of your headset. This immersive experience is so natural that many of our UAE customers often forget they are wearing headphones at all.

The "SH" Silent System is a sophisticated internal device that allows you to play your acoustic grand piano privately at any time. When Silent mode is activated, a specialized shank stopper rail prevents the hammers from striking the strings, while high-precision non-contact optical sensors under each key capture every nuance of your touch. These sensors trigger a digital tone generator that delivers the majestic sound of a Yamaha CFX concert grand through your headphones, ensuring you maintain the authentic feel of a real piano action without disturbing your family or neighbors in your Dubai home.



The structural elements located beneath a grand piano, particularly the support columns connected to the soundboard, play a critical role in the overall tonal quality of the instrument.

These back support posts are essential for producing a rich, full, and resonant sound. If these structural components are weak or insufficient, the piano body may gradually lose its stability over time. This can lead to deformation in the frame and ultimately result in energy loss, directly affecting sound projection and performance.

For this reason, the rear frame and soundboard support structure are extremely important in high-quality grand pianos.

C3X and bigger size is 20% more strong

In premium models such as the Yamaha C3X and above — including C4X, C5X, C6X, and C7X — the back frame and supporting wooden structures are typically designed to be approximately 20% larger and stronger. This enhancement allows for improved structural stability and significantly increases the power and richness of the sound.

The soundboard is the primary source of resonance in a piano. It features a carefully engineered curved structure known as the crown, which plays a vital role in how sound is projected and distributed.

The process of creating and maintaining this crown is one of the most critical elements in piano manufacturing, as it directly affects tonal response and sound quality.

Yamaha has continuously refined this process, combining deep knowledge gained from traditional piano craftsmanship with modern technology. This unique balance has enabled them to achieve highly responsive and well-balanced soundboards.

In models such as the Yamaha C3X and above, where superior resonance is essential, the construction of the soundboard, ribs, and bridge follows the same principles used in the flagship concert grand CFX. This results in enhanced resonance, improved responsiveness, and a noticeably richer and more powerful tonal performance.

The quality of the music wire used in a piano plays a fundamental role in shaping its overall sound. It directly influences key elements such as tone, clarity, and sustain.

In the Yamaha CX series, specially developed music wire is used to produce a rich spectrum of harmonics along with a long, balanced sustain. This contributes significantly to the depth and character of the instrument’s sound.

Yamaha applies this same high standard of string technology across the entire CX series, including the C2X model. By maintaining consistency in materials and manufacturing, Yamaha ensures a reliable and refined tonal performance in every instrument.

As the strings are the primary source of sound production in a piano, their quality is essential. Yamaha’s use of premium-grade materials and advanced production techniques allows each piano to deliver a clear, expressive, and well-sustained tone.

This attention to detail is one of the reasons why the CX series is recognized for its high level of sound quality and performance.

The frame of a modern piano plays a critical role in withstanding the immense tension of the strings, which can reach up to 20 tons in total. This structural component, combined with the wooden body of the piano, not only supports this tension but also has a direct influence on the tonal quality of the instrument.

One of Yamaha’s key advantages over many other manufacturers is that their piano frames are produced in-house at their Hamamatsu factory in Japan. By maintaining full control over production, Yamaha ensures exceptional consistency and precision.

Using advanced casting techniques such as the vacuum process, along with decades of technical expertise in areas like material composition and temperature control, Yamaha has achieved an outstanding level of quality. This level of craftsmanship and technological refinement is difficult to match and sets Yamaha apart in the global piano industry.

Piano Hammers and Tonal Expression

Piano hammers play a fundamental role in producing a rich, clear, and expressive sound. Their quality and design have a direct impact on the tonal character and responsiveness of the instrument.

Yamaha understands the importance of hammer construction in shaping a piano’s unique voice. Drawing on over a century of research, development, and craftsmanship, Yamaha has refined its hammer design to achieve exceptional tonal balance and consistency.

The CX series utilizes hammer felt and design concepts derived from Yamaha’s flagship concert grand, the CFX. This ensures that even in smaller models, the same level of tonal precision and expressive capability is maintained.

As a result, the hammers respond with great sensitivity to the player’s touch, producing a clear, bright, and well-defined sound that can be effectively conveyed to the listener.

In an acoustic piano, each key moves only about 10 millimeters However within this small movement a pianist can create a wide range of tones by controlling touch and using the pedals.

This level of expression is something that even modern digital pianos cannot fully reproduce It is one of the true characteristics of an acoustic piano.

To achieve this, Yamaha puts great care into every instrument. Through a process called regulation, the action is adjusted so that even the smallest touch from the player is transferred accurately. In voicing, the hammers are carefully treated to produce a balanced and beautiful tone.

These processes are still done by skilled craftsmen, whose experience and attention to detail ensure the high quality of each piano.

This combination of technology and craftsmanship is one of the reasons Yamaha continues to be one of the world’s leading piano manufacturers.

Design Philosophy of the CX Series

When it comes to design, Yamaha has always aimed to achieve elegance through simplicity. This philosophy is clearly reflected in the CX series, which inherits its design language from the flagship CFX concert grand.

The CX pianos feature clean lines and a refined structure, with unnecessary decorative elements intentionally removed. This approach creates a timeless and classic appearance that emphasizes the true identity of the instrument.

At the same time, functional elements such as the hardware and structural details are thoughtfully designed to enhance both durability and usability. Rather than relying on excessive ornamentation, Yamaha focuses on balance, strength, and purpose in every aspect of the design.

The result is a piano that embodies simplicity, strength, and classic beauty.

Soft-Close Fallboard Mechanism

In many traditional pianos, the keyboard lid (fallboard) is designed without a soft-close mechanism, which can pose a risk during use. Yamaha, however, has incorporated a soft-close system into its pianos for many years.

This mechanism allows the fallboard to close slowly and smoothly, preventing it from shutting abruptly. It is especially important for safety, as the lid of a piano can be relatively heavy and may cause injury to fingers—particularly for children or even pianists during regular use.

By integrating this thoughtful feature, Yamaha enhances both safety and user experience. All models within the CX series are equipped with this soft-close fallboard mechanism, reflecting Yamaha’s attention to detail and commitment to practical design.

Key Materials and Ivory Feel

In the past, many pianos were equipped with natural ivory White key. However, due to international regulations and environmental concerns regarding the use of elephant ivory, piano manufacturers have transitioned to more sustainable alternatives.

Yamaha has fully adopted high-quality synthetic ivory for all of its instruments. In the CX series, Yamaha uses a specially developed material known as “Ivorite” for the white keys. This advanced material is designed to replicate the natural texture, moisture absorption, and tactile feel of real ivory, providing a comfortable and secure playing experience.

For the black keys, Yamaha uses ebony, maintaining a traditional and high-quality touch.

By combining modern materials with traditional craftsmanship, Yamaha ensures both environmental responsibility and an authentic playing feel.
